AUTOMATED AND SEMI-AUTOMATED RIVETING

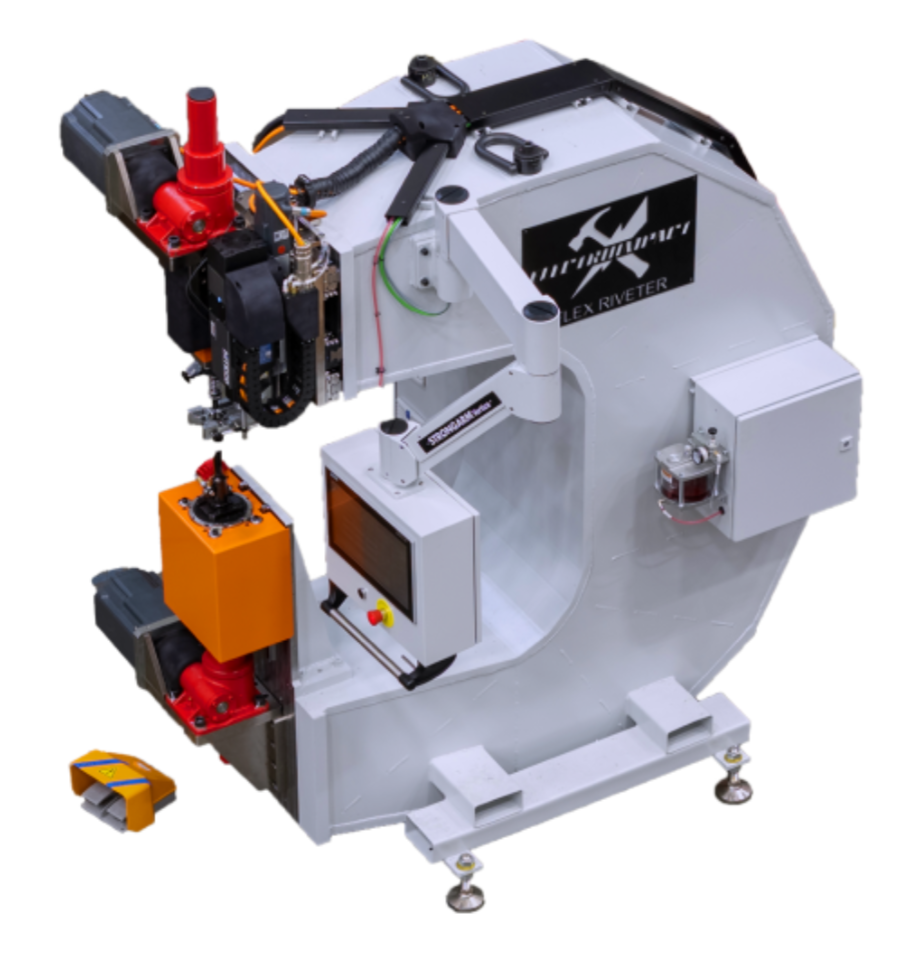

This is our Semi-Automatic Flexriveter.

Bacon ipsum dolor amet jerky beef ribs bresaola ball tip corned beef, kevin short ribs short loin rump ham andouille flank ground round spare ribs turducken. Burgdoggen leberkas flank porchetta tongue. Hamburger boudin shoulder doner pork belly ground round ham hock cupim ball tip cow sirloin sausage pork loin tri-tip filet mignon. Pancetta sausage doner andouille boudin corned beef swine shoulder tri-tip biltong leberkas chicken buffalo pig drumstick. Strip steak cow sausage pork loin prosciutto turducken tongue alcatra beef t-bone pig meatball.

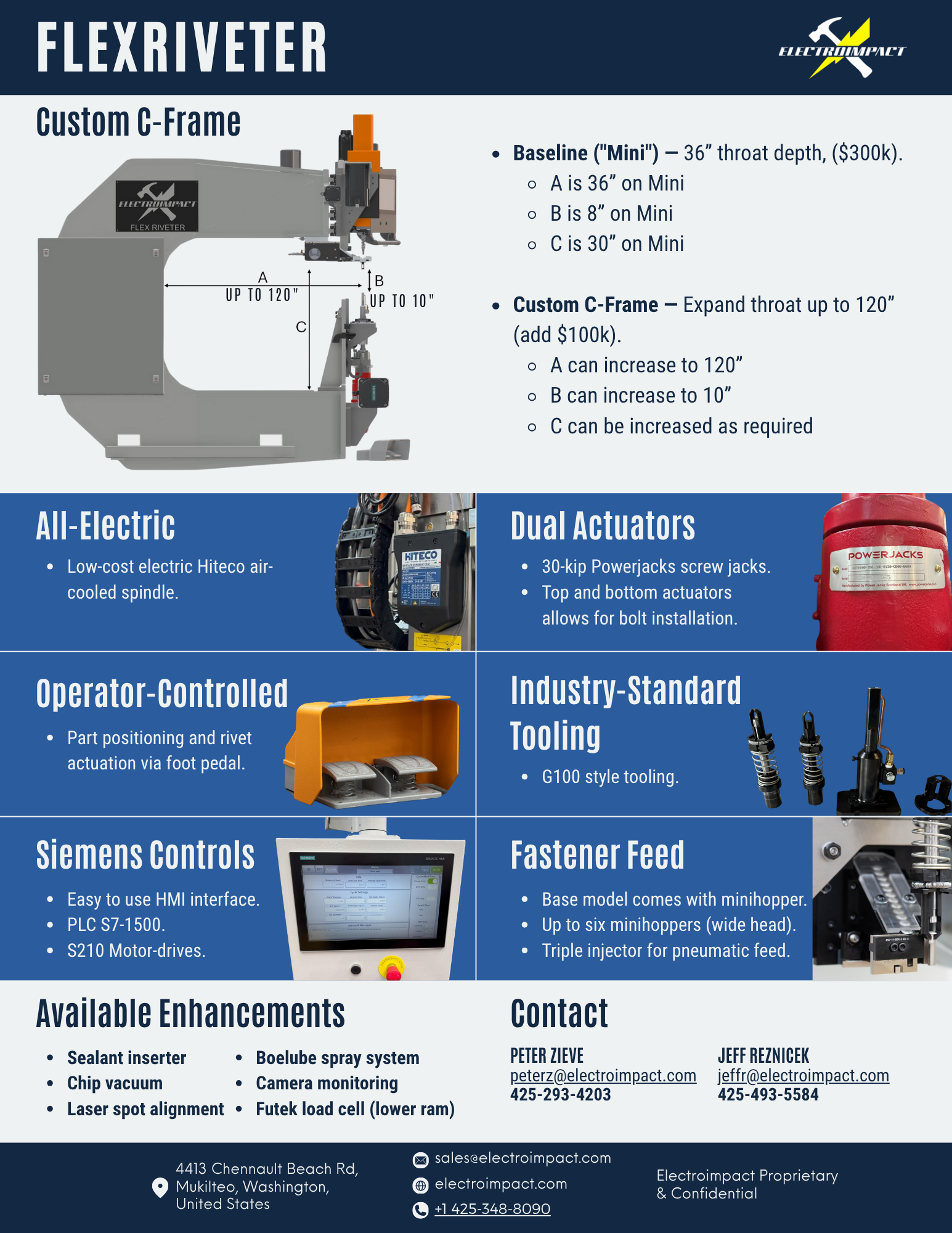

View Brochure →

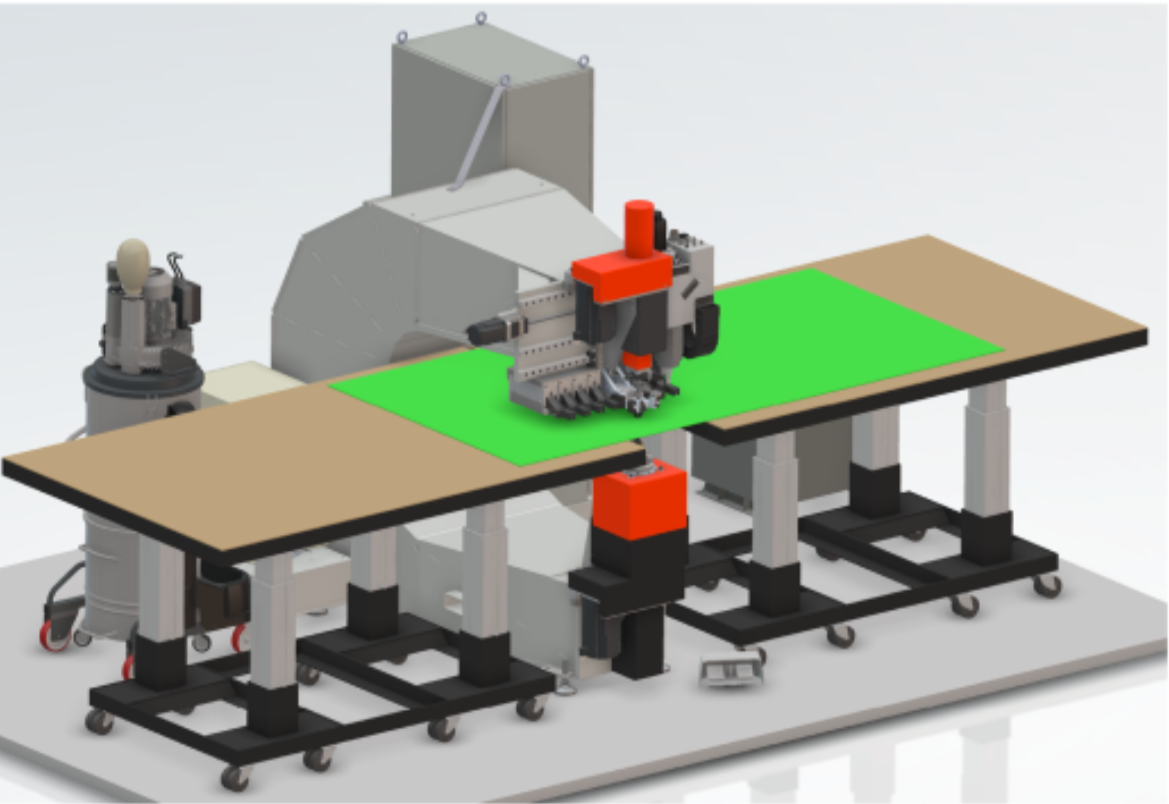

Semi-Automatic Riveter

Here is a variation with adjustable part support tables and six mini-hoppers mounted on the head that facilitates an ARS

More Info →

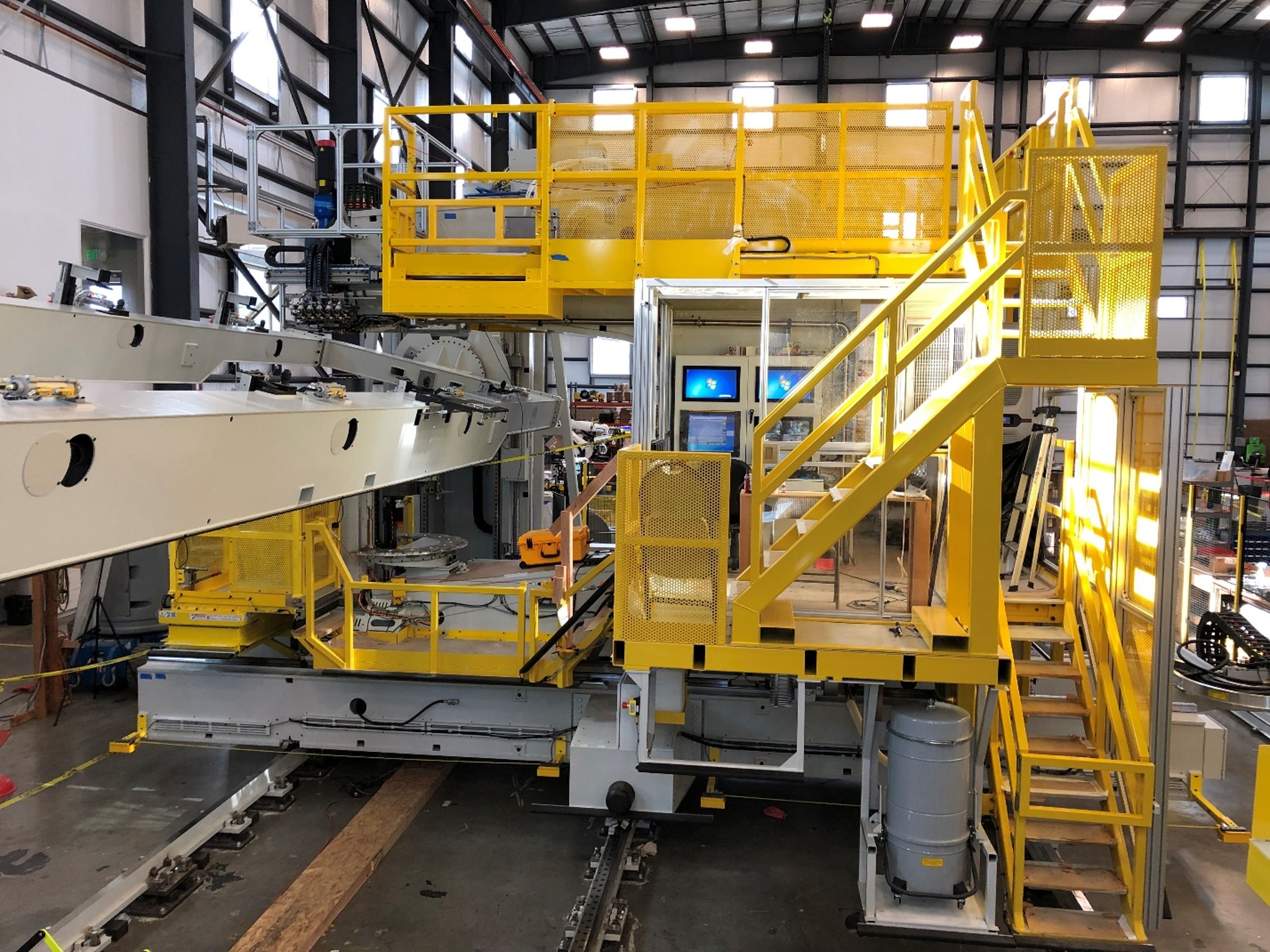

Automatic C-Frame Riveter

In an Automatic C-Frame Riveter the rivet position is controlled by a CNC control running a part program. The part is held in a barge that moves the part from rivet location to rivet location. For these machines the X and Y axes are on the C-Frame.

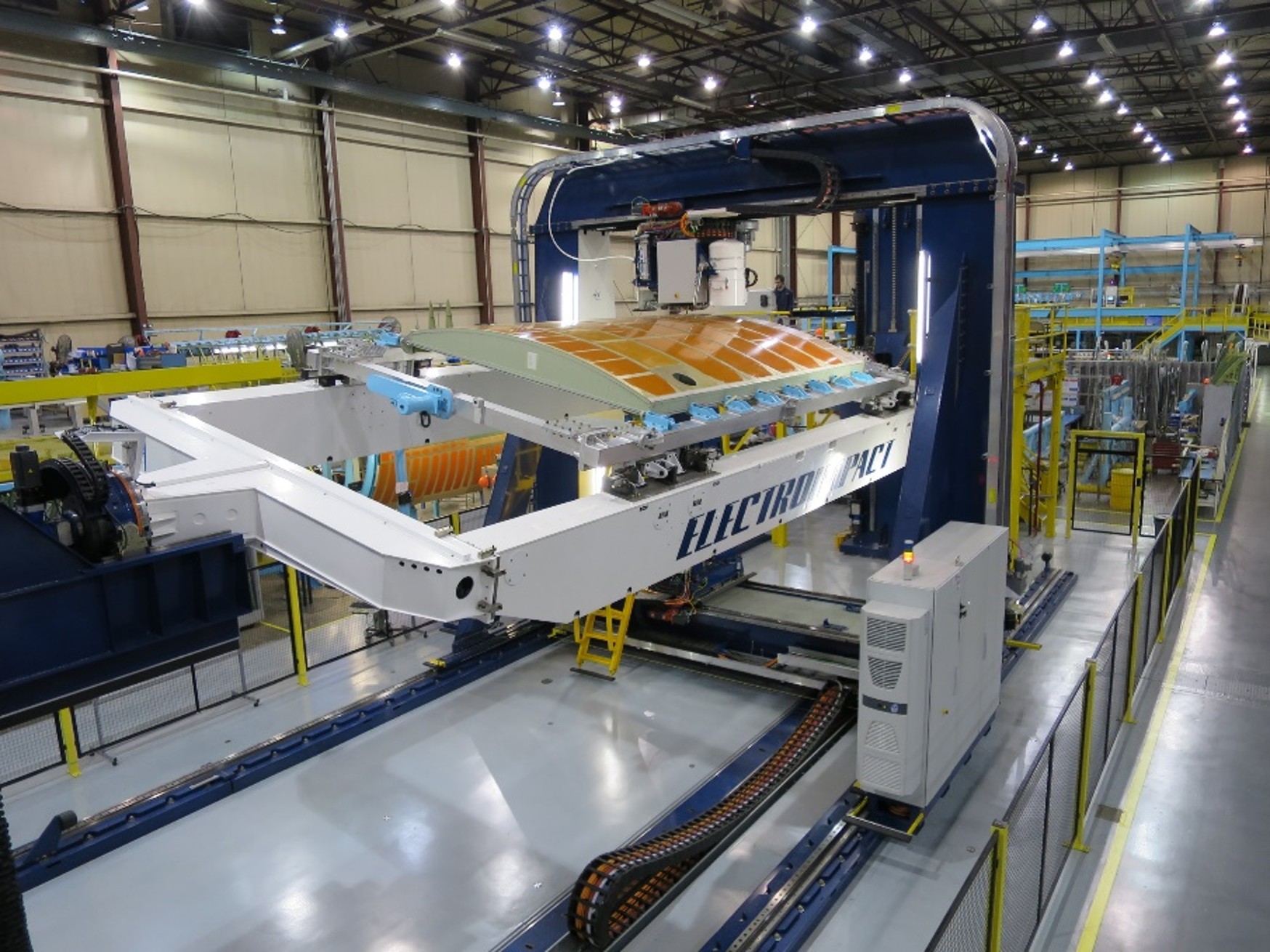

Automatic D-Frame Riveter
  • Panel Capacity: 3.5–10 m panels; straight or tapered curvature; 17 panel styles without removing form boards
  • Tooling: Picture-frame holder with 4 linear-rail form boards and removable index plates for fast reconfiguration
  • Access / Travel: ±50° A-axis, ±10° B-axis, up to 10 m X-travel
  • Loading: Frame lowers to floor and rotates 90° for loading/unloading
  • Automation: Auto drill and anvil tool changers; pneumatic pressure foot retract; integrated chip vacuum & fastener injection
  • Fastening System: Electric servo squeeze for up to 1/4″ fasteners with stack thickness measurement & dynamic squeeze control
  • Controls: Siemens or Fanuc CNC (this machine developed on Siemens platform)
More Info →

Automatic Gantry Riveter
  • Application: ARJ21 wing panel fastening (stringers and buttstraps) — scalable to A320/737 panel size range
  • Fastener / Process Capability: Auto-feed and install LGPS, Briles, and slug fasteners with drill, countersink, seal, drive, collar-swage, coldwork, ream, and shave operations
  • Throughput: ~16 slug rivets per minute in a drill-upset-shave cycle
  • Head Architecture: Independent 4-axis fastening heads with full CNC alignment — eliminates yoke structure used on earlier LVER machines
  • Cycle Time & Efficiency: High-speed tools, short tool stroke, and non-contact sensors designed for fast throughput and unattended operation
  • Structural / Foundation Impact: 70–80% weight reduction versus earlier LVER machines with new bed design reducing foundation requirements
  • Controls: Custom CNC interface with mode-specific displays and software alignment control of fastening heads
